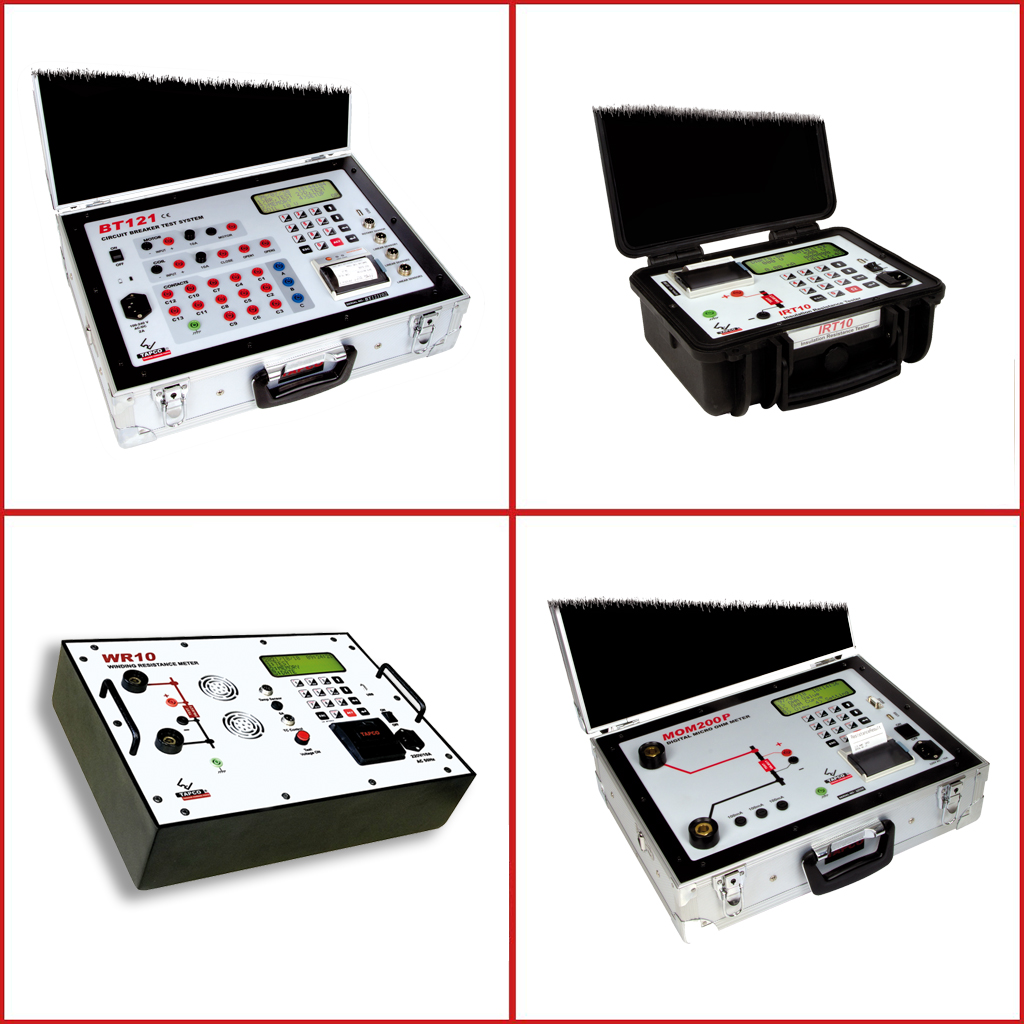

Welcome to TapcoCAN

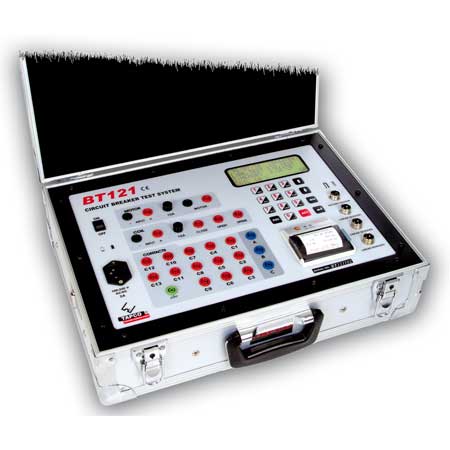

The complete toolbox for electrical and mechanical test of high, medium and low voltage circuit breakers. It collects and saves the data quality related to circuit breaker (disconnector switch, breaker) in offline state at which we can make decision about breakers performance quality based on this data.

Features:

·         Containing one increasing encoder input and three linear sensor input

·         Containing 16 inputs for contacts

·         Measurement of time and motion

·         Applying maneuvers: Open, Close, Open-Close, Open-delay-Close, Close-delay-Open, Open-delay-Close-Open

·         Measurement of coils and motor current, spring charge time

·         Special tests for contactors and non-operating mechanism breakers

·         Graphical results for quick interpretation

·         Standalone along with PC control software

·         Equipped with thermal printer

·         Stores up to 96 test results

·         Battery operated

Read More

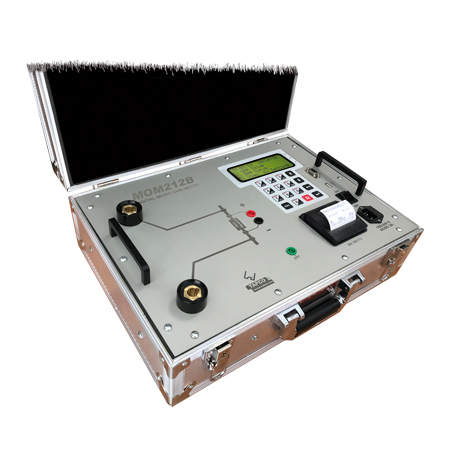

The complete toolbox for measuring contact resistance in the micro ohm range by applying high current to both ends

(Battery Operated)

Features:

- Resistance measurement range: 1µΩ to 160mΩ

- Output current: up to 200 A DC

- Output voltage: up to 5 V DC

- Output power: up to 1 KW

- Battery and main line operated

- Portable and heavy-duty case

- Extremely reliable and easy to use

• - PC control with MOMSOFT software (Full bilanguage: English and Persian)

Applications:

- Circuit breaker manufacturers

- Repair and maintenance of electrical power plant companies

- Electrical power plant EPC companies

- Electrical power labs

- Big factories e.g. Steel, petrochemicals, refineries, and...

Measurement of resistance of breakers and sectionners contacts, bus bars, sectionners, and conductors

connections, cables, wires, and transfer lines conductors, generator graphite and electro motors, and in

cohesion test of airplane fuselags, train railways, and resistance welding, and anywhere we want to measure

conductor resistance in the extent of micro ohm/ milliohm.

Read More

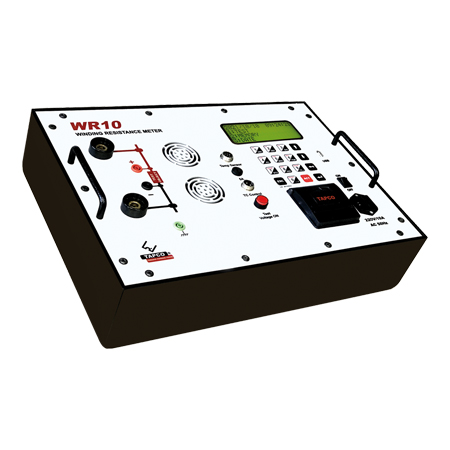

The complete toolbox for measuring the winding resistance of power, distribution and current transformers and power electromotors.

Features:

• -Resistance measurement range: 1 μΩ - 50 Ω
• -Output voltage: up to 50 V DC
• -Output current: up to 20 A DC
• -Output power: up to 1 KW
• -Accuracy: ± 1% of the reading
• -Rapid automatic discharge
• -Rapid automatic demagnetization
• -Temperature measurement channel
• -Calculation of copper and aluminum resistance at the specified temperature
• -Built-in tap changer control unit
• -Method in accordance with CEI / IEC standard
• -Portable and heavy-duty case
• -Extremely reliable and easy to use
• -Storage capacity for over 70 transformer tests
• -USB, WIFI connectivity
• -User-friendly mobile app.
• -Thermal printer
•

Applications:

• -High power transformer manufacturers
• -Repair and maintenance of electrical power plant companies
• -Electrical power plant EPC companies
• -Electrical power labs
• -Big factories e.g. Steel, petrochemicals, refineries, and...

Read More

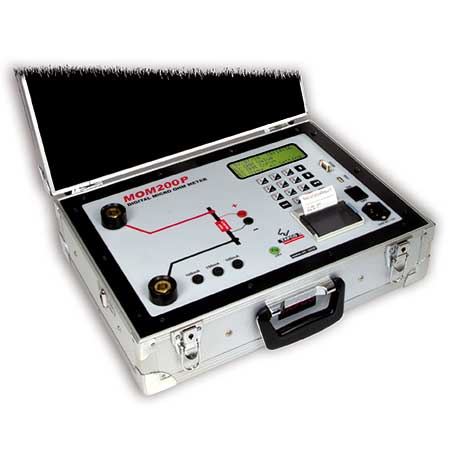

General functioning of digital Micro Ohm Meter is measuring contact resistance, applying high current towards double head conductor and measuring its resistance value based on micro ohm/ milliohm extent. Thus, based on these information we decide about quality of regarded conductor.

Features:

·         Variable current flow: 25A to 200A with 1A accuracy

·         maximum output voltage: 5V DC

·         Measurement range: 1 micro ohm to 16000 micro ohm  with accuracy of 1 micro ohm, and 10 micro ohm to 160 milliohm with accuracy of 10 micro ohm

·         Store up to 500 test results for resistance value

·         Store up to 143 test results for curve of resistance

·         System speed: 14.7MHz

·         measurement fault: ±1digit+1%

·         Input supply: 200V-240V AC/ 50 HZ

·         maximum power consumption: 1100 VA

·         maximum current consumption: 5A

·         Equipped with thermal printer

·         Internal real time clock

·         Connectivity: USB, RS232

Read More
